Magnetic Loop Antena Top Bands MLA-T

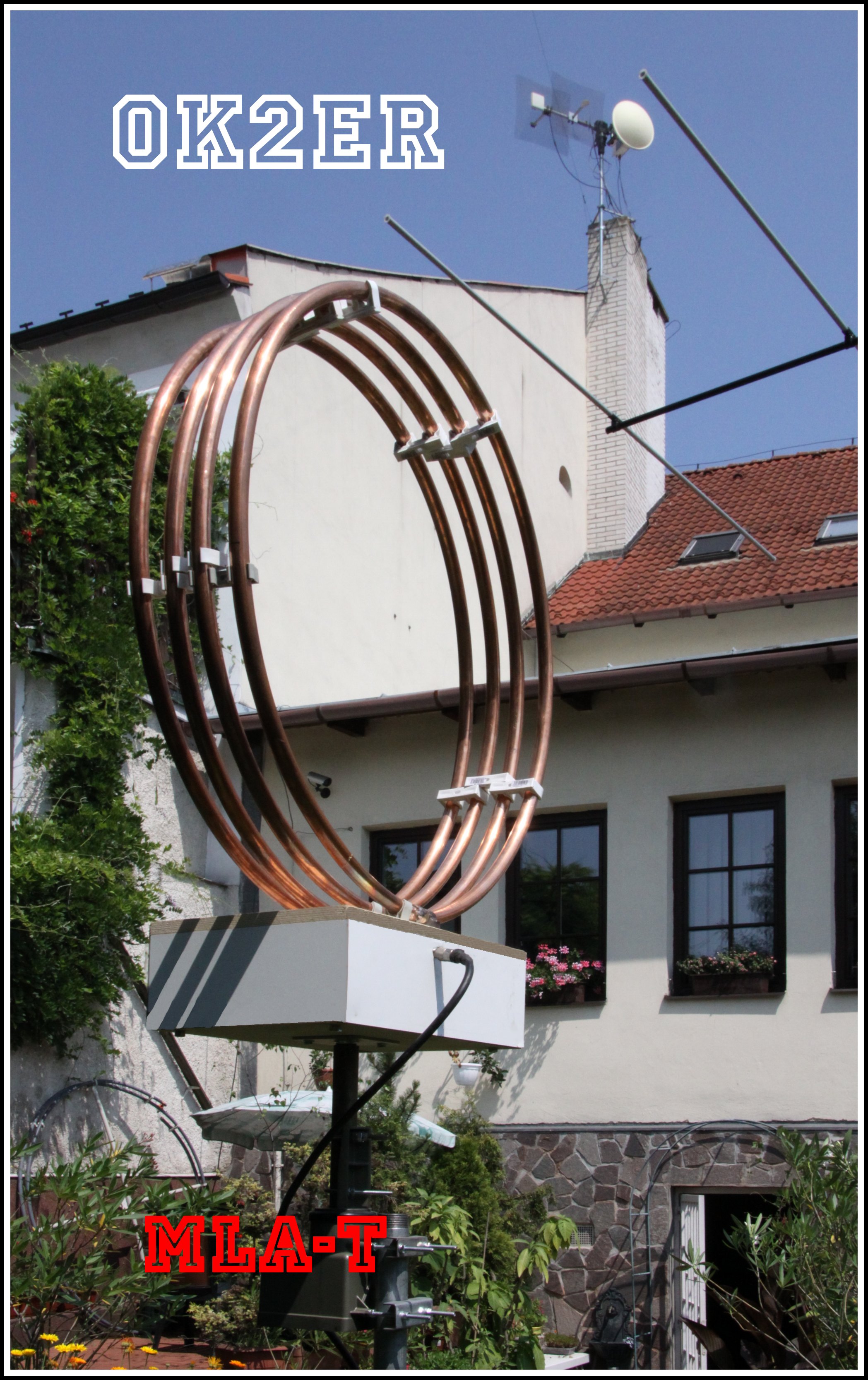

Magnetic loop antenna MLA-T (Magnetic Loop Antenna Top Bands) is operation with power up to 100W and designed mainly for portable use on 160m, 80m and 40m bands. On 160m band 3S loss agaist dipole in several tens of meters high needs to be expected while this loss has strong dependence on polarization of received signal. Operation on 40m band is possible by shorting of loop by mechanical jumper which is included. Robust design of 4 loops MLA provides relatively good efficiency even with extremely small diameter of antenna. Antenna is serving satisfactory results mainly on 40m and 80m band while 160m is compromise between minimal dimmensions of antenna and physical attainable effect. Bands switching is not designed to remote control so MLA-T is not ideal solution for static base antennas. In its price category MLA-T extends commercial magnetic loop antennas range designed to two top HAM bands.

Technical specifications:
Loop diameter: 80 cm
Dimensions: 82 x 105 x 22 cm
Weight: 12 kg
Input impedance : 50 Ohm
Input connector: N

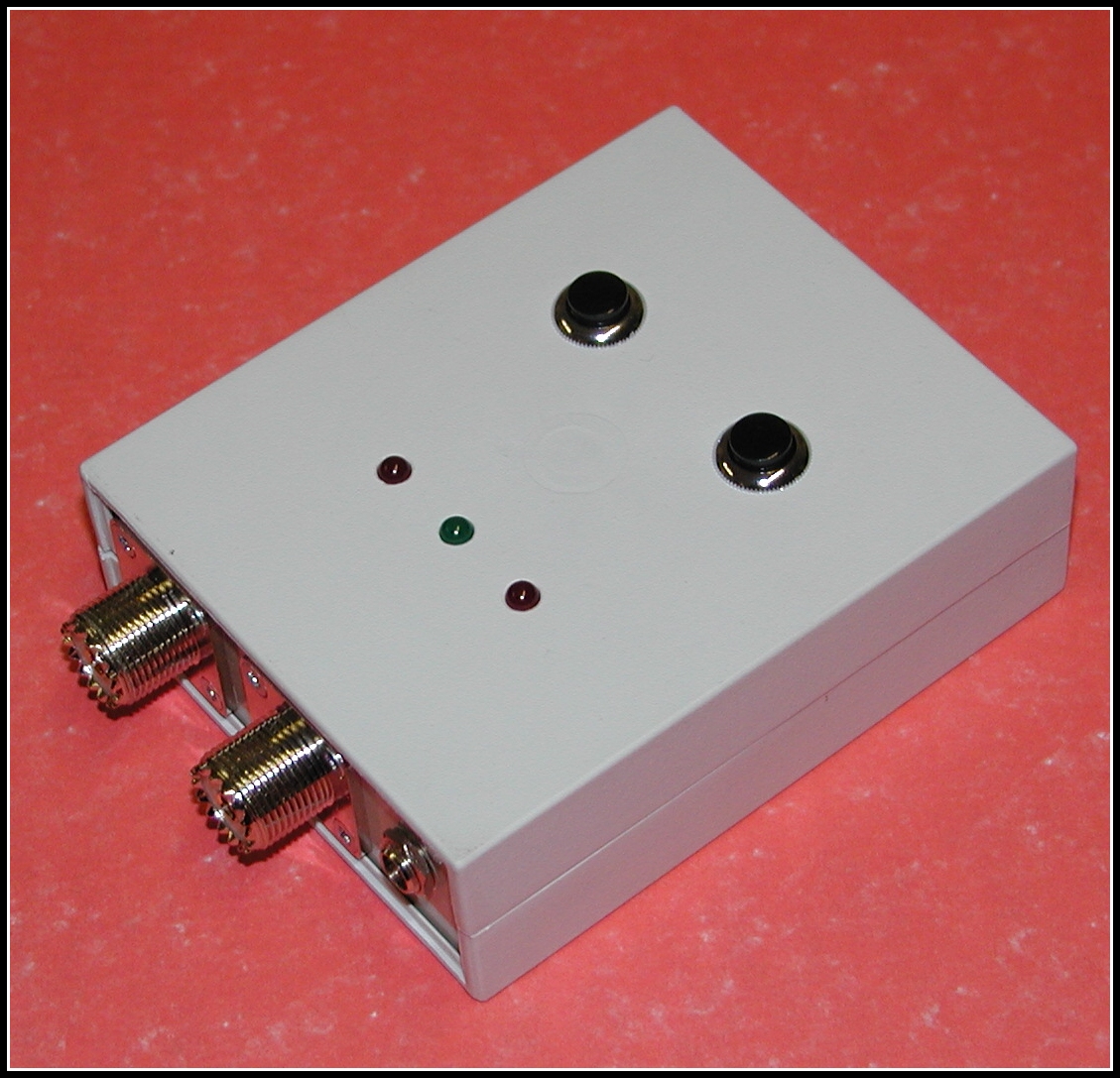

Control panel connector: 2x PL
Maximum input power: 100 W
Frequency range: 1.8 to 1.95 and 3.3 to 4 MHz
SWR (tuned): 1:1.1
